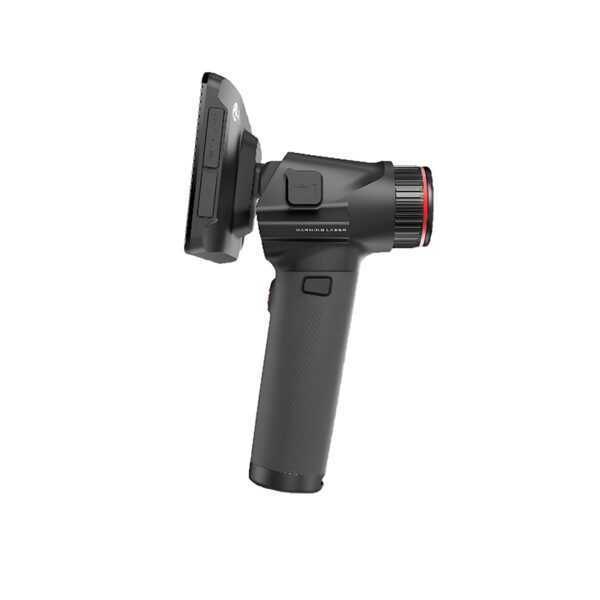

Detachable Monocular Thermal Camera For Wildlife

The series XL is a detachable thermal camera for wildlife, its unique “3-in-1” flexibility and versatility, provides users with efficient solutions for different scenarios. Although the thermal camera for wildlife XP09 does not support an external screen, but it is lightweight, high integration, flexible data connectivity. These series of each model has its own advantages, widely applicable across various fields and scenarios, allows users to easily adapt to needs.

Key Features:

• One For All
  This unique design allows users to easily adapt to various needs.
  Detachable thermal camera for wildlife hunting monocular XL19 XL25 XP09 without the need for complex tools, different components can be freely combined, quickly adjusting the device according to specific scenarios to maximize functionality, for example as following:
  Integrated Mode: For direct handheld use or quick scanning, the integrated mode provides a stable grip and intuitive operation experience.

1. Mounted Mode: By using a mounting bracket or tripod, it can be converted to a mounted mode, suitable for long-term fixed monitoring or observation scenarios such as wildlife observation and security surveillance.
2. Mobile Mode: Supports wireless connection to a smartphone via Wi-Fi or Bluetooth, allowing the phone to serve as a display and control center. This enables remote viewing and control of thermal imaging, greatly enhancing the device’s portability and flexibility.

• AMOLED Ultra-Clear Screen (XL19 and XL25)
  The XL19 and XL25 models are equipped with a 5-inch AMOLED ultra-clear large screen, offering ultra-clear image quality. The high contrast, wide color gamut, and fast response characteristics of the AMOLED screen make the images clearer and more detailed, providing a better visual experience.

• Powerful Reality+ Technology (XP09)
  Reality+ technology is an innovative feature applicable to the XP09.
  By optimizing image processing algorithms, it enhances clarity, sensitivity, and smoothness, making targets more distinct and easily captured even in complex environments.

• Comfortable Design
  This thermal camera for wildlife is designed for provides excellent balance and grip.
  Whether used handheld for long periods or mounted, it ensures user comfort and operational stability.

• Ultra-Long Battery Life
  For scenarios requiring prolonged use, such as outdoor adventures and search and rescue operations, the ultra-long battery life allows for extended expeditions, improving practicality and greatly enhancing survival capability in harsh environments.

---

SPECIFICATIONS

Model	XL19	XL25	XP09
Detector Resolution	384×288	384×288	256×192
Pixel Size	17μm	17μm	12μm
Objective Lens(Lens Focal Length)	19mm	25mm	9mm
Field of View(HxV),°	19°x14.7°	15°x11.2°	19.6°x14.7°
Detection Distance (target: 1.7m×0.5m, P(n)=99%)	700m	900m	850m
Frame Rate	50Hz	50Hz	50Hz
Stand by time	11h	11h	9h
NETD	≤40mk	≤40mk	≤40mk
Display Resolution	1280×720	1280×720	/
Monitor	AMOLED	AMOLED	/
Manual focus	Yes	Yes	Yes
Image mode	Jungle, city, bird watching, Plain/Black hot, white hot, red hot, color
Electronic-zoom	1×、2×、4×	1×、2×、4×	1×、2×
WI-FI	√	√	/
Photo recording	√	√	√
Video	√	√	√
Hot-sot track	√	√	√
Laser-target indicator	√	√	√
Interface	TYPE C	TYPE C	TYPE C
Memory	32G	32G	/
Operating Temperature	-20℃~50℃	-20℃~50℃	-20℃~50℃
IP rating	IP67	IP67	IP67
Weight	≤500g	≤500g	≤335g
Response band range	8~14μm	8~14μm	8~14μm
