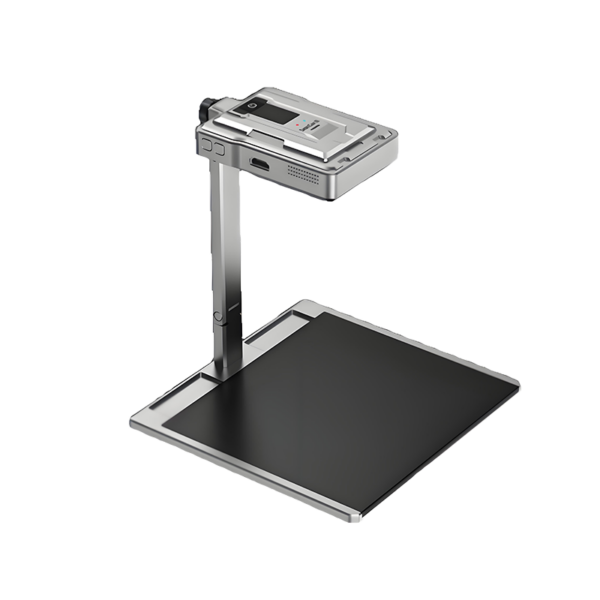

Shortcam Thermal Camera For Electronics Repair

The ShortCam thermal camera is a dual-spectral detection tool specifically for PCB repair, it allows for quickly locating short circuits, faulty components causing and leakage faults in PCBA. The ShortCam thermal camera features 4K UHD resolution, providing ultra-clear imaging that allows users to easily identify small defects on circuit boards. Additionally, its ultra-wide viewing angle, full-area scanning support, and dual-spectral imaging technology greatly enhances the PCBA repair efficiency and reduces testing complexity.  The design of the ShortCam balances portability and practicality, a dual-fold design for easy storage, making it suitable for on-site repairs and mobile use. Users can directly output video via HDMI and connect wirelessly through Wi-Fi, allowing for seamless switching with microscopes, which facilitates detailed observation and analysis of detection results, as well as simple remote monitoring and data transmission.

This ShortCam thermal camera is widely used in mobile phone repair, automotive maintenance, and electronic product development, providing professionals with efficient and precise detection. Whether in complex repair environments or during the quality control process of electronic products, the ShortCam is work efficiency and troubleshooting capabilities, making it an indispensable detection tool.

Key Features

– Dual-Fold Design: Convenient for storage and easy to carry.
– High Resolution: Provides 4K clarity for detailed imaging.
– Ultra-Wide Viewing Angle: Supports full-area scanning, improving detection efficiency.
– Dual-Spectral Imaging: Rapidly detects leakage and accurately pinpoints issues.
– HDMI Video Output: Seamless switching with microscopes for easy display.
– Wi-Fi Connection: Simple operation for remote monitoring and data transmission.

APPLICATION
– Mobile Phone Repair:
Quickly locate circuit board faults to enhance repair efficiency.
– Automotive Maintenance:
Detect issues in automotive circuit boards to ensure vehicle safety.
– Electronic Product Development:
Assist in testing prototype boards and samples to ensure quality control.
– Industrial Maintenance:
Applicable for circuit board detection in various equipment, reducing downtime.

Mobile motherboard repair  & Automotive motherboard repair

Graphics card repair

Digital evaluation

Process assessment

SPECIFICATION

Infrared Thermal Imaging	Resolution	256×192
	Wavelength Range	7.5~13.5 μm
	Field of View	56° × 42°
Visible Light	Resolution	3840×2160 4K 800W
Interface and              Display	Display Mode	Visible light/Thermal Imaging/Quick check
	Connection Type	Type-C USB2.0/WiFi/HDMI
	Image Storage Format	JPG
Temperature Measurement	Measurement Distance	16.5cm
	Measurement Accuracy	±3℃ or ±3% (whichever is larger)
	Measurement Range	-20℃~550℃
General Specifications	Input Power Voltage	12V DC
	Power Consumption	6W
	Storage Temperature	-20℃~60℃
	Operating Environment	3℃~45℃
	System Version	Android 6.0, iOS12.0, Windows 7 and above
	Product Dimensions	192.2mm×183.3mm×203.7mm
	Weight	942.3g
