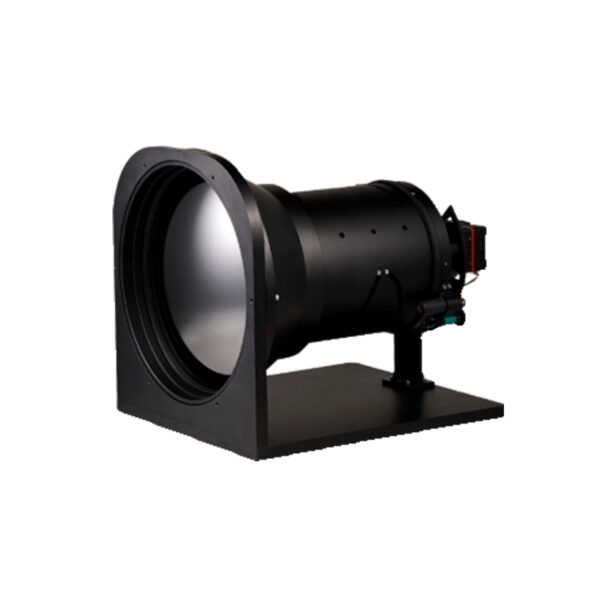

LWIR Longwave Infrared Camera VOx 7x Zoom High Definition 1280*1024
LWIR longwave infrared camera combines long-range zoom capabilities and high-definition imaging, leveraging the unique characteristics of LWIR (Long-wave Infrared) technology. With exceptional long-distance analysis and clear visual imaging, it finds applications in fields such as long-range surveillance, border control, wildlife monitoring, and aerial inspections where precise imaging is crucial.
Key Features:
· Uncooled VOx 12μm Detector
· 1280×1024 HD Resolution
· Thermal Intelligence
· H.265 & H.264 Compression. Triple Streams, and ONVIF Compatibility
· 50~350mm 7x Zoom, Fast and accurate autofocus.
· Support Electronical Imaging Stabilization, Various pseudo-colour adjustments, image detail enhancement system functions.
· Support dual streams, meet the varying demands of stream bandwidth and frame rate for live preview and storage.
· Support IVS: Tripwire, Intrusion, Loitering, etc.
· Support ONVIF, Compatible with VMS and network devices from leading manufacturers.
· Full functions: PTZ control, Alarm, Audio, OSD.
High Lights:
Extended Coverage
This uncooled LWIR longwave infrared camera renowned in the industry for their zoom capabilities, with this 350mm zoom lens being the longest focal length of its kind on the market,
it increases the detection distance in long-range applications over 10KM, making large-scale, all-time monitoring possible in any lighting condition.
Thermal Sensitivity & Clarity
The uncooled LWIR longwave infrared camera uses industry leading SXGA(1280*1024) high definition 12μm process FPA Vox microbolometer, with a great sensitivity of NETD <50mK,
enhance your camera’s identification capability for under covers or minor temperature differences.
Instant Focusing
Focusing speed is crucial in a fast transition (zoom operation) from wide area coverage to detailed close ups, especially for fast moving targets. With in-house Synchronized Instant Focusing algorithm, LWIR thermal modules are able to achieve smooth and rapid zooming, avoiding missing any key moments.
Thermal Analytics
The uncooled LWIR longwave infrared camera are capable of running various machine learning trained detection algorithms (human/vehicle/vessel classification etc) with excellent accuracy, reducing most of the false alert and archiving smart key target tracking.
Specification:
Uncooled VOx LWIR longwave infrared camera
|
|||
| Detector | Type | Uncooled VOx Microbolometer | |
| Pixel Pitch | 12μm | ||
| Array Size | 1280 * 1024 | ||
| Spectral Band | 8 ～ 14μm | ||
| NETD | ≤50mK@25℃, F#1.0 | ||
| ` | Focal Length | 50 ～ 350mm | |
| Zoom | 7× | ||
| Aperture | FNo：1.4 | ||
| HFOV | 17.46° ～ 2.51° | ||
| VFOV | 14.01° ～ 2.01° | ||
| Zoom Speed | 5.0Sec (Optics, Wide ～ Tele) | ||
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG | |
| Resolution | Main Stream： PAL@25fps:1280*1024704*576 NTSC@25fps:1280*1024704*480Sub Stream1: PAL@25fps: 740*576 352*288 NTSC@25fps:740*480 352*240 Sub Stream2: PAL@25fps:740*576 352*288 NTSC@25fps:740*480 352*240 |
||
| Video Bit Rate | 8kbps ～ 50Mbps | ||
| Audio Compression | AAC / MPEG2-Layer2 | ||
| Storage Capabilities | TF card, up to 1TB | ||
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | ||
| General Events | Motion Detection, Tamper Detection, Scene Changing, | ||
| IVS | Tripwire, Intrusion, Loitering, etc. | ||
| Noise Reduction | √ | ||
| Image Settings | Brightness, Contrast, Sharpness, etc. | ||
| Upgrade | √ | ||
| FFC Mode | Auto / Manual | ||
| Fire Alarm | √ | ||
| Focus Model | Auto/Manual/Semi-Auto | ||
| Digital Zoom | 4X | ||
| Electronic Imaging Stabilization | √ | ||
| External Control | 2x TTL3.3V, Compatible with PELCO protocols RS485, Compatible with VISCA protocols |
||
| Video Output | Network / SDI | ||
| Baud Rate | 9600 | ||
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | ||
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | ||
| Weight | 19200g | ||
| Power | +9 ～ +12V DC (Recommend: 12V) | ||
| Power Consumption | Static: 4.0W; Max: 8.4W | ||
| Dimension (mm) | 430.24*300*325mm | ||
| DRI Distance | |||
| Effective Distance, human (1.80 m x 0.5 m)¹ |
Detection | 9722m（31896 ft） | |
| Recognition | 2431m（7975 ft） | ||
| Identification | 1215m（3986 ft） | ||
| Effective Distance, vehicle (4.0 m x 1.40 m)¹ |
Detection | 27222m（89311 ft） | |
| Recognition | 6806m（22506 ft） | ||
| Identification | 3403m（11164 ft） | ||
