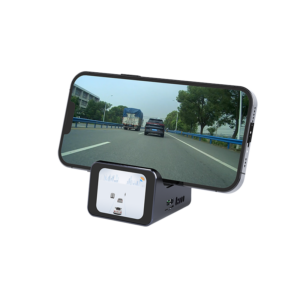

Small Infrared Car Camera For Automotive Assisted Driving

The infrared car camera IR-Pilot Box-M mainly for car ,is a high-performance smart driving assistance product designed specifically for the automotive market. The infrared car camera supports multiple video output interfaces CVBS/AHD/LVDS, when paired with the front-end infrared module, creates an integrated front-to-back smart warning solution. This solution meets the needs of passenger cars, commercial vehicles, special vehicles, and more for target recognition and collision warning in extreme conditions such as darkness, glare from high beams, haze, rain, snow, and more. This infrared car camera features its compact size, unique features, and broad applicability, IR-Pilot IR.Box-M demonstrates significant advantages in enhancing driving safety, making it an ideal choice for modern automotive safe driving.



Highlights

• Compact Size:  69×80×28mm, easy installation and layout
• Lightweight: ≤170g
• Diverse alarm for early notification
• Rich Output Interfaces: CVBS/AHD/LVDS
• AI Intelligence: Accurate detection and recognition of targets such as pedestrians and vehicles, with collision warning
• Waterproof and Dustproof : can Customized to IP67/IP69K

---

Key Features

The infrared car camera IR.Box-M is a high-end driving assistance device for vehicles that integrates advanced technology and intelligent functions.

1.69×80×28mmCompact Design:
Reduces installation complexity and space requirements, enabling seamless integration into dashboards or discreet locations of various vehicle types.Easy Installation: Thanks to its compact size and equipped plug-and-play interfaces, it minimizes installation time and costs while reducing the need for specialized installation expertise.

2.Diverse Alarm AI Multi-Gradient Color Alarm:
Capable of displaying risk levels through changes in light colors (e.g., red, yellow, green) based on detected danger levels, allowing drivers to quickly grasp current road conditions.
Audio Alarm:  In addition to visual alarms, the audio alarm function alerts drivers with sound cues in emergency situations, enhancing driving safety.

3.Multiple Video Output Interfaces
Supports interfaces CVBS (Composite Video Signal), AHD (Analog High-Definition Video Interface), and LVDS (Low-Voltage Differential Signaling).
This enables easy compatibility with displays and monitoring systems found in most vehicle models on the market, eliminating the need for additional conversion equipment.

Whether it’s passenger cars, commercial vehicles, or special-purpose vehicles,  the Thermal Vision Camera Controller IR-Pilot IR.Box-M can fulfill the driving assistance needs of diverse vehicle types.



Application

The infrared car camera IR-Pilot IR.Box-M has valuable applications in the fields of auto motive, automotive assisted driving, autonomous driving, special vehicles,

and mining operations.

• Special Vehicles:
  Police cars, fire trucks, and ambulances benefit from higher visual clarity at night and in complex environments.
• Smart Loading Ports: Enhance safety and efficiency in operations where visibility is low at night or in adverse weather conditions.
• Autonomous Driving: Provides environmental perception capabilities during nighttime or adverse weather conditions.
• Automotive Driver Assistance: As an important component of ADAS systems, it enhances the intelligence and driving safety of traditional vehicles.

Automotive Driver Assistance

Special Vehicles

Smart Loading Ports

Autonomous Driving

---

SPECIFICATION

Model	IR-Pilot IR. Box-M
Product Name	Infrared Car Camera
System Performance
Power Supply	DC 12V (9~16V)	DC 12V (9~16V)
CPU	2-core CortexA53	2-core CortexA53
NPU	2TOPS	2TOPS
Power Consumption	≤6W	≤6W
Intelligent Recognition	Target detection, classification, depth perception, collision warning
Interfaces
Video Interface	Input: GMSL FAKRA Z TYPE
	Output: AHD/CVBS/LVDS
Audio Interface	Output: line-out
Communication Interface	CAN
Environmental Data
Operating Temperature	-40℃~+85℃
Waterproof Rating	IP54  (customizable to IP67, IP69K)
Others
Dimensions	W: 69mm, L: 80mm, H: 28mm
Weight	≤170g
