Longwave Cooled Infrared Camera Detector
This is a 320×256/30μm cooled thermal imaging detector, also high resolutions are available, such as 640×512 15μm, 1280×1024 15μm.
C330S LWIR is one of T2SL LWIR cooled infrared camera detector developed by Global Sensor Technology (GST). It consists of a 320×256/30µm Type II Superlattice (T2SL) cooled photon detector, Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands. Without fear of interference, C330S LWIR infrared camera detector is suitable for target detection in complex background, such as ships on the sea in the scene of light reflection on the water surface, aircraft in the background of clouds in the sky, etc.
T2SL cooled infrared camera detector adopts the world’s leading T2SL technology which enables mass production capability and thus ultimately it will benefit the users with more affordable price but never compromise in performance. The industrial standard size and interface enable customers to switch to and benefit from the most advanced T2SL technology without further R&D investment.
Key Features :
Long-wave thermal imaging detection
-Strong ability to penetrate sand and dust, adaptable to complex environments
-Capable of detecting cryogenic objects
-Ability to detect low-temperature objects
-The sun and sea are not disturbed by reflections
Type II superlattice technology
-High quantum efficiency and high sensitivity
-Excellent performance in LWIR & dual-color
-High FPA operation temperature
-Low dark current density, low noise
-Large array, good uniformity, high yield
Application:
Flight Vision Enhancement System(EVS )

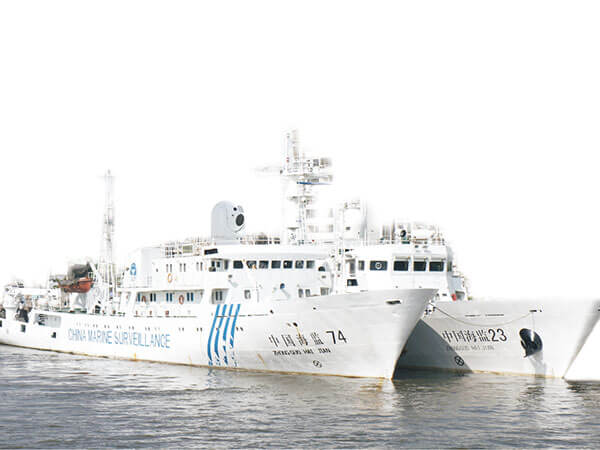

Multi-Sensor Payload
Gas Detection
Hand-Held Reconnaissance System
Remote Monitoring System
Search & Tracking System
SPECIFICATION
| Model | C330S LWIR cooled infrared camera detector |
| Sensitive Material | T2SL |
| Resolution | 320×256 |
| Pixel Size | 30μm |
| Spectral Range | 7.7μm±0.2μm～9.4μm±0.3μm |
| Working Mode | Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 36Me-/12Me- |
| Dynamic Range | ≥80dB |
| Number of Output | 1 or 4; Up to 6.6 MHz per Output |
| Typical NETD | 20mK (F2) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler | RS058 |
| Steady Power Consumption | ≤8W |
| Max. Power Consumption | ≤17W |
| Power Supply | 24V DC |
| Cooling Time | ≤5min30s |
| Maximum Size (mm) | 142×58.5×71 |
| Weight | ≤600g |
| Operating Temperature | -45°C~+71°C |
