Infiray T3s For Android Mobile Phone

This Infiray t3s for android mobile phone attachment, only 40g, powered by your smartphone. As the first small thermal imaging camera by InfiRay, Infiray t3s brings you a brand new camera experience. The Infiray t3s with the USB Type-C interface, can be directly connected to Android, tablets, computers, and other devices that support this interface. Featuring APP or PC software, this small thermal imaging camera can perform real-time thermal image display and temperature statistics, it is embedded with  384×288 /17μm vanadium oxide VOx sensor, which can provide clear images and make your search in the dark easier.

Key Features :

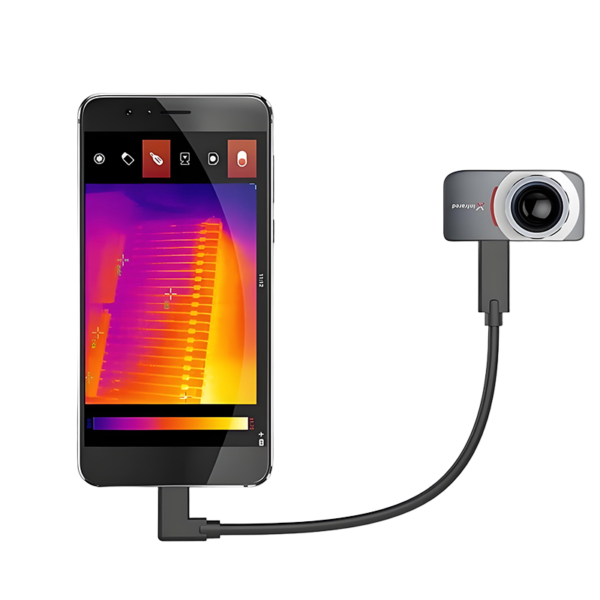

• Directly connected to the phone through the USB Type-C interface.
• Powered by smartphone, no need for extra battery, ultra-low power consumption (<0.5W).
• 384×288 thermal sensor,, 110,000 pixels, help you get ultra clear images.
• 25Hz high frame rate, no freeze, allows you to capture every moment in the night.
• 13mm lens, with alloy body ,F1.0 aperture lens can enhance image quality.
• Manual focusing,  quick focusing, can be far or near.
• Professional APP, providing point, line, and surface temperature measurement.
• NETD≤60mK, temperature measurement accuracy ±3℃.
• Temperature measurement range :  -20℃～＋120℃.
• Provide temperature correction parameters, temperature measurement is more professional and accurate.
• <500mK ultra-low power consumption.
• SDK development kit is available, support Android, Windows, Linux platforms.
• Environmental compensation correction.
• Plug and play, easy to operate
• Secondary development: Provide SDK to promote secondary development for customized use in various industries.384×288 resolution, Infiray t3s is the clearest thermal camera for Android.


  13mm F1.0 Aperture Lens to enable the camera to see further and clearer.
  Infiray t3s providing  2,760,000 temperature data per second.

  Exclusive Matrixlll image processing algorithm.
  25Hz High-Speed Instant Refresh.

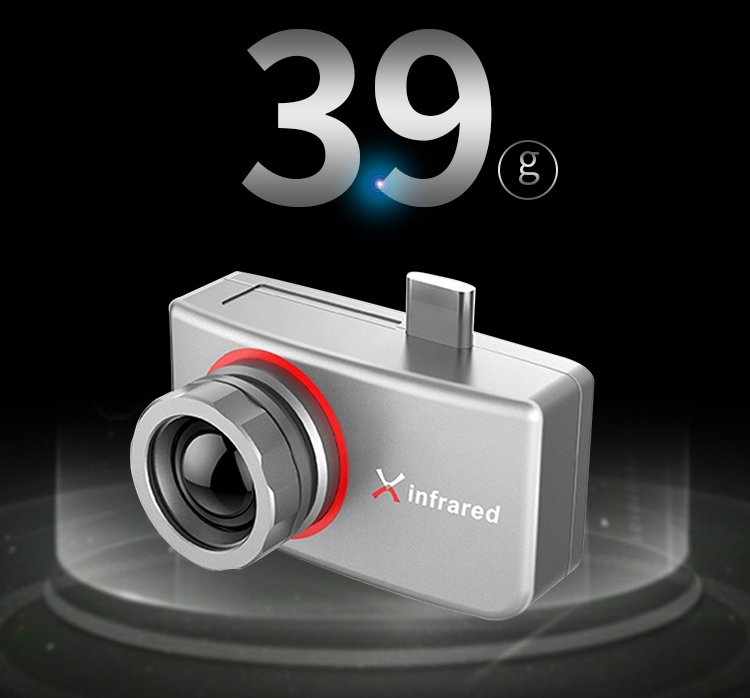

  Infiray t3s is only weight 39g.

  Easy to quick secondary integration.


  APPLICATIONS

  Application Fields


  ---
