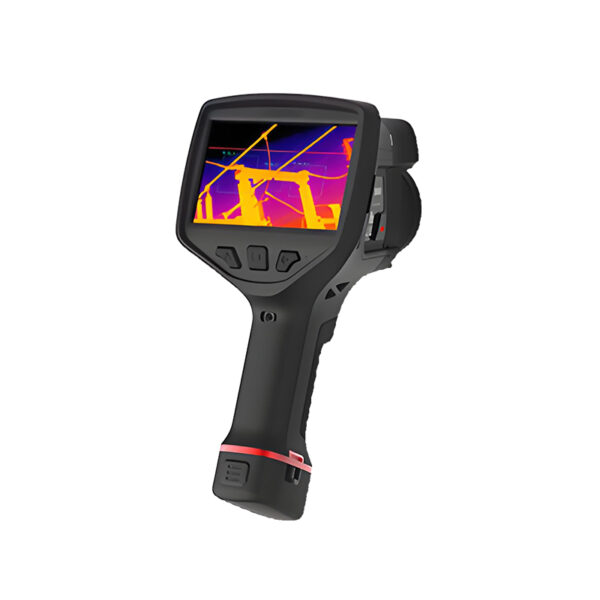

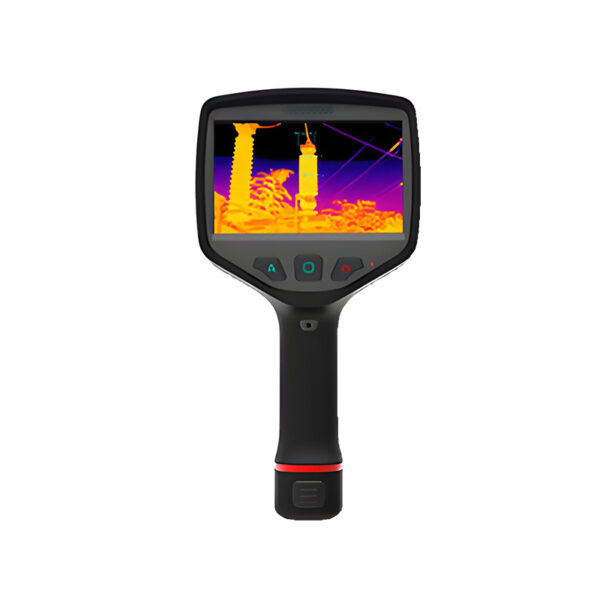

Handheld Thermal Imager With 640×512 High Resolution For Electrical

Handheld thermal imager T300/ T600 is a high resolution 384×288 / 640×512  inspection tool designed for electrical. It features a high-pixel and high-sensitivity VOx infrared detector, integrating the latest technological achievements of Arrow Vision, special with automatic focusing and interchangeable lenses. Its powerful hardware configuration excels in applications such as production equipment inspections, process inspections, and metallurgy and chemical industries. This handheld thermal imager not only leads the industry in hardware configuration but also achieves comprehensive innovation in software functions, with breakthroughs such as intelligent shooting (inspection task package), intelligent database management (image retrieval, comparison, analysis), and intelligent diagnostics. With its outstanding performance, powerful configuration, and professional software functions, the handheld thermal imager provides an unprecedented efficient solution for inspections and maintenance in the power industry, making it an indispensable high-efficiency inspection tool.

Advantages

• Handheld thermal imager camera for electrical inspections
• 384×288 / 640×512 Resolution For Optional
• Utilizing a high-performance VOx infrared detector, supporting 4x super-pixel capability
• Wide temperature from -20℃ to +2000℃
  Meeting the detection needs in special environments ,including real-time monitoring of high-temperature equipment.
• Digital Zoom of ×1, ×2, ×4, ×8
  Coupled with a fully automatic infrared focusing system, enabling quick and precise focusing to enhance inspection efficiency.



Key Features:

• Leading Performance

-High resolution and super-pixel technology for clear and detailed images,

-Multiple lens choices, flexible for various scenes, adapting to different detection needs in terms of distance and viewing angle.

-Fully automatic infrared focusing for quick focusing, reducing manual intervention and enhancing work efficiency.

• Powerful Hardware Configuration

-5 inch touch screen for intuitive and easy operation, enhancing user experience.

-500W visible light camera for dual-spectrum recording of inspection results, making the results more comprehensive.

-Diverse and flexible file and video transmission methods (4G, WiFi, HDMI, USB) for convenient data sharing and storage.

-Integrated GPS, Bluetooth, laser ranging, sound, and light alarms, making operation and maintenance quicker and more efficient, enhancing convenience and safety.

• Professional Software

– Intelligent Shooting: Customized inspection task package to reduce missed and incorrect inspections.

– Database Management: Supports image retrieval, comparison, and analysis for easy historical data tracing and trend analysis.

-Intelligent Diagnostics: Quickly provides equipment defect diagnosis and suggestions, reducing the difficulty of manual judgment and achieving intelligent diagnosis.

-Automatic Test Report Generation: One-click generation of professional inspection reports, reducing data processing and learning costs, and improving work efficiency.

---

Transmission Line Inspection

Electric Substation Inspection

Transmission Line Inspection

Distribution System Electronic Inspection

Applicable scene

• Electrical Inspections / Transmission Line Inspection / Substation Inspection / Temperature monitoring of transformers, switch cabinets, and busbars in substations to ensure safe operation of equipment /
• Manufacturing: Temperature detection of high-temperature furnaces, pipelines, valves, and other equipment in industries such as metallurgy and petrochemicals to prevent safety incidents.
• Metallurgy and Petrochemicals: Provides efficient and safe temperature detection and fault diagnosis solutions for high-temperature, high-pressure, flammable, and explosive environments.

---

SPECIFICATIONS

Model	T600                           /                 T300
Detector Resolution	640×512                     /                  384×288
Super Resolution	4×（1280×960）    /                    4×（768×576）
NETD	35mk
Lens	Standard: 24°, Optional: 48°, 12°, 6°, etc.
Temperature Measurement Range	1. Standard: -20°C~+150°C (low range), 0°C410°C (medium range), 300°C650°C (high range) 2. Optional: 300°C~2000°C
Temperature Measurement Accuracy	±2°C or ±2% of the reading
Digital Camera	Built-in 5MP digital camera with LED light
Laser Rangefinder	Supported
Focusing Mode	Manual, Automatic, Electric
Lens Replacement	Card slot replacement (to improve energy transmittance)
Palette	10 color palettes
Temperature Measurement Settings	Up to 10 points, 10 boxes, and 5 lines simultaneously, (including maximum, minimum, and average values).
Full-Screen Maximum/Minimum Temperature	Supported, automatically captures the highest and lowest temperatures on the screen
Image Adjustment	Automatic/Manual; Linear or Histogram; Can lock maximum, minimum, or temperature range
Digital Zoom	×1, ×2, ×4, ×8
Image Modes	Infrared, Visible Light, Picture-in-Picture, Fusion, iMIX
Isotherm	Supported
Temperature Difference	Automatically calculates the temperature difference for similar analyses
Text Annotations	Select text annotations from a preset list, editable on the thermal imager
Smart Shooting	Supports inspection task packages and automatic image naming
Smart Diagnosis	Intelligent diagnosis for electrical defects (optional)
Voice Annotations	Supports voice annotations stored with the image
QR Code Scanning	Supports scanning and reading QR code string information
Display	5-inch touch screen
WiFi	Real-time image transmission to mobile phone/computer via Wifi
4G	Real-time image transmission to mobile phone/computer via 4G
GPS	Built-in GPS, automatically adds location information to the image
Bluetooth	Can listen to image audio information through Bluetooth headset
Alarm	Automatic sound and light alarm for set temperature values/above/below, etc.
Storage	2G SD card (approximately 10,000 infrared images can be stored), expandable to 128G
Image Format	jpg (with full temperature data)/png (with full temperature data)/standard format of the State Grid
Infrared Video Format	H.264 video or full-radiation infrared video stored to SD card
Video Output Interface	Micro HDMI interface
Battery	Removable rechargeable lithium battery
Battery Operating Time	Approximately 3 hours @25°C
Power Management	Supports sleep mode
Charging Method	Dock charger
Weight	≤1.3kg (including battery)
Dimensions	260×135×136mm
Operating Temperature	-20℃~+ 55℃
Storage Temperature	-40°C~+70°C
