Handheld Thermal Camera Scanning Hti xintai ht 18+

Features:

• Fast Temperature Detection

It allows users to quickly scan and identify problem areas in heating systems, water pipes, and electrical appliances, such as leaks or overheating devices, enabling timely action.

• 0.07°C High Sensitivity

The handheld thermal camera can detect extremely subtle temperature changes. It is particularly effective for detecting hidden energy waste in the home, such as heat loss caused by unsealed windows, and abnormal heating of electrical devices. The automatic cold and hot spot tracking function allows users to accurately locate the problem by simply following the indicators.

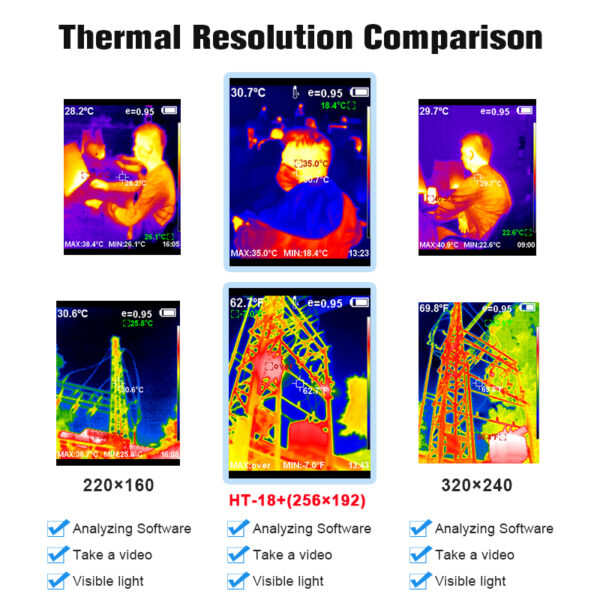

• 256×192 High Resolution

Lens Cap:  Protects the lens from external damage as following



Application

– Underfloor Heating Water Pipe Detection:

Quickly locate leaks or blockages in underfloor heating systems to ensure effective heating during winter.

– Distribution Box Fault Detection: By detecting the temperature distribution of components inside the distribution box, potential issues such as overheating or short circuits can be identified early, preventing fire hazards and other safety incidents.

– Automotive Fault Detection: In automotive repair, the infrared thermal imaging camera can quickly identify abnormal high-temperature points in areas like the engine or braking system, aiding in precise repairs.

– Motor Equipment Fault Detection: Overheating during motor operation is often a precursor to failure. The HT-18+ helps maintenance personnel detect and address these issues promptly, ensuring production safety.

– Motor Fault Detection: For industrial equipment motors, infrared thermal imaging can monitor the temperature status of components such as bearings and windings, preventing downtime or damage due to overheating.

– Power Failure Inspection :In power line inspections, the handheld thermal camera HT-18+ is an indispensable tool.

It detects temperature anomalies in key areas like cable joints and transformers, to eliminate potential hazards in time.

Home Inspection Applications:

– Heating System Inspection:

Check for temperature imbalances in heating pipes, radiators, and other components due to leaks or blockages.

– Water and Electrical Inspection:

Detect leaks in water pipes and faucets, as well as overheating in wires and outlets due to overload.

– Appliance Inspection :

Regularly check the heat dissipation of household appliances like refrigerators, air conditioners, and washing machines to prevent malfunctions or safety hazards caused by overheating.

– Energy Efficiency Assessment:

Evaluate the thermal insulation performance of doors, windows, and walls to assess home energy efficiency and provide energy-saving recommendations.



---

SPECIFICATION:

Model	HT-H18+  Handheld thermal camera
Infrared Camera	Infrared Detector Type	Vanadium oxide uncooled infrared focal Detector
	Resolution	256×192
	Response	8 to14μm
	Pixel	12μm
	NETD	≤50 mK @ 25℃, @ F/1.13.2 mm
	IFOV	3.75 mrad
	FOV (Field of View)	56°x 42°
	Focusing Method	Fixed Focus
	Temperature Measurement Range:	-20℃ to +550℃ (-4℉ to 1022℉)
	Temperature Measurement Accuracy	-15℃ to 550℃: ±2℃ or ±2% -20℃ to -15℃: ±4℃
	Temperature Measurement Resolution	0.1℃
	Temperature Measurement Mode	Center Point/Hot and Cold Spot Tracking
	Color Palette	Rainbow/Iron Red/Cool Color/White Hot/Black Hot
	Emissivity Setting	Adjustable from 0.01 to 1.00
	Thermal Imaging Frame Rate	≤25 Hz
	Visible Light Resolution	640×480
	Display Screen Size	3.2 inches (240×320)
	Image Display Mode	Image Display Mode
	Device Storage	Built-in 4G eMMC (Approx. 3G available for user)
	Image/Video Storage Format	JPG/MP4
	Image/Video Export Method	Export via USB connection to a computer
	Image Analysis Function	Supports offline analysis on PC
	Menu Languages	Chinese, English, German, Italian
	Battery	Dedicated Removable Rechargeable Lithium Battery
	Battery Capacity	2200mAh
	Operating Time	2 to 3 hours
	Power Interface	Micro USB
	Power Settings	5 minutes / 20 minutes / No Auto Shutdown
	Operating Temperature	-10℃ to +50℃
	Storage Temperature	-20℃ to +60℃
	Relative Humidity	10% to 85% RH (non-condensing)
	Product Weight	389g
	Product Dimensions	90mm × 105mm × 223mm
