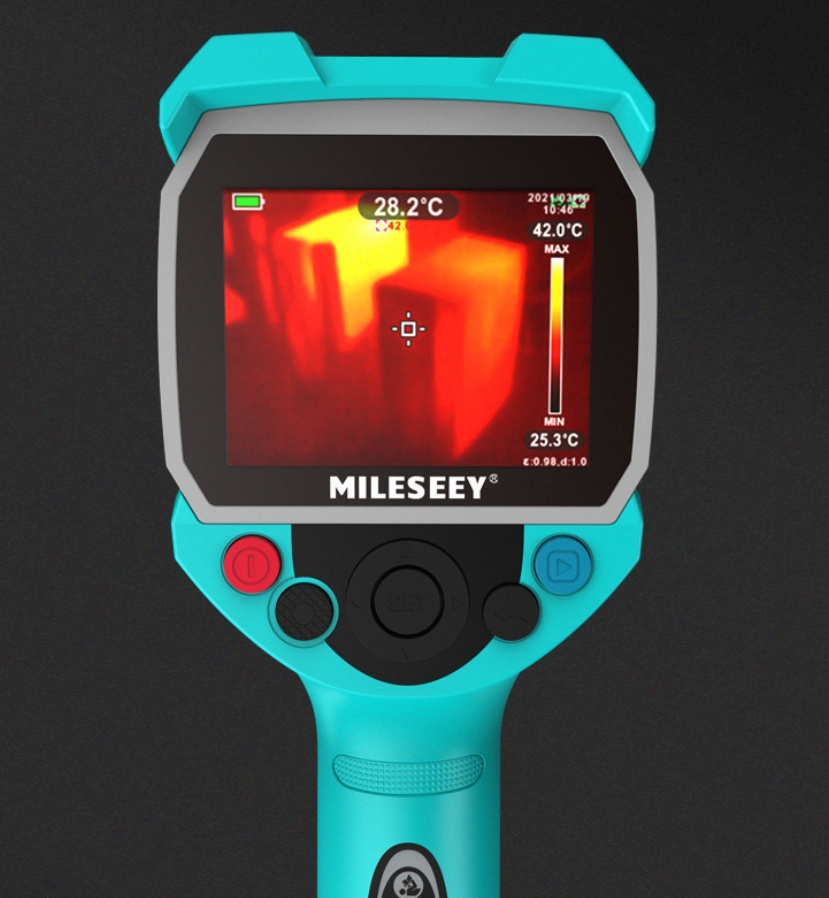

Handheld Ir Camera With 3.5-inch LCD Screen
This handheld ir camera with 3.5 inch LCD screen which is a high resolution temperature measurement device, it combines infrared and visible light dual-camera technology to provide clear imaging. This design allows for simultaneous display of infrared thermal images and visible light images on one screen, enhancing the intuitiveness and accuracy of field inspections and troubleshooting. Whether working at night or in complex environments, it can capture temperature differences and quickly locate hot or cold spots, offering strong support for equipment maintenance.
The newest handheld ir camera equipped with a 3.5-inch high-definition large screen, it allows users to view temperature results in real time and supports the capturing and storage of images for later analysis. The built-in USB charging interface enhances convenience and improves work efficiency and data management. With a lightweight design that is easy to carry, widely applicable in industries such as electric power, metallurgy, petrochemicals, construction, and manufacturing. This handheld ir camera suitable for equipment maintenance, underfloor heating inspection, LED testing, and electrical repairs, helping users achieve precise and efficient temperature detection.
Advantages:
– Dual-camera display with infrared and visible light
– Automatic hotspot and cold spot tracking
– High-power LED light
– High/low temperature alarm
– Adjustable emissivity
– 10 hours of long-lasting battery life
– 3.5-inch LCD large screen
– USB data transfer functionality
– Storage for 2000 images
Application :
– Equipment maintenance
– Underfloor heating inspection
– Electrical repairs
– Automotive diagnostics
– Pipeline inspection
– Electronic component testing
Visible light camera/ high power LED light /up to 10 hours of battery life.
Six color palates:
Red hot, white hot, iron red lava, rainbow, and high-contrast rainbow.
Choosing the appropriate color palette can better showcase the details of the target object.
3.5-inch large LCD display.
SPECIFICATION:
| Model | TR120 Handheld ir camera |
| Pixels | 10800 (120*90) |
| Spectral Response Band | 814 μm |
| Field of View Angle | 50° x 63.4° |
| Pixel Size | 17 μm |
| Output Frame Rate | ≤20 Hz |
| Thermal Sensitivity | < 60 mK |
| Temperature Measurement Range | -20°C to 400°C |
| Temperature Accuracy
(at -20°C to 0°C) |
±5°C |
| Temperature Accuracy
(at 0°C to 100°C) |
±3°C |
| Temperature Accuracy
(at 100°C to 120°C) |
±5% |
| Detection Distance Range | 0.5 m to 1.2 m |
| Color Palette | Four color palettes |
| High/Low Temperature Alarm | √ |
| Screen Size | 3.5 inches |
| Display Screen Resolution | 320 x 240 |
| Visible Light Resolution | 300,000 (640 x 480) |
| Storage | External 8G MicroSD Card |
| Communication Interface | USB 2.0 (FS) |
| Power Supply | Lithium Battery / 5000 mAh / 3.7V |
| LED Lighting | High-power white LED |
| Waterproof Rating | IP65 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Drop Resistance | 1.5 m |
| Dimensions (mm) | 238 x 95 x 85 |
| Weight (g) | 540 |
