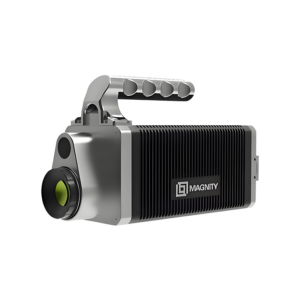

Cooled Infrared Camera With 650X512 Resolution

The cooled infrared camera is a high-end detection device, specifically designed to meet high-precision temperature measurement requirements. It features a high-sensitivity cooled detector capable of quickly capturing and processing subtle temperature changes, ensuring clear imaging and accurate temperature measurements. Additionally, it supports single-point or two-point non-uniformity correction, which significantly improves image quality. Users can also opt for a 2-position or 4-position motorized filter wheel for precise measurements across different spectral bands, adapting to various complex environments.
The cooled infrared camera is equipped with real-time radiometric temperature measurement, with a basic temperature measurement range of 0°C to 150°C, extendable up to 1500°C.
This makes it suitable for non-contact temperature measurements industrial equipment, measurement accuracy reaching ≤±1% or ±1°C, it fulfills the high-precision temperature measurement needs of scientific research, industrial monitoring, fire warning, and characteristic measurements.
This cooled infrared camera also supports multiple data output modes, allowing users to flexibly switch between raw image data, corrected image data, or radiometric temperature image data, enabling better control over the thermal state of the target being measured.

With its numerous advantages and flexible operation, the cooled infrared camera is an essential tool in modern industry and scientific research, known for its high reliability and scalability.

Key Features
– Single-point or two-point non-uniformity correction
– Optional 2-position or 4-position motorized filter wheel
– Real-time radiometric temperature measurement
– Wide temperature measurement range, extendable up to 1500°C, suitable for non-contact temperature measurements of high-temperature targets
– High accuracy with measurement precision of ≤±1% or ±1°C, meeting the demands of high-precision temperature environments
– Real-time data output with options to switch between raw image data, corrected image data, and radiometric temperature image data

Applications

Industrial Monitoring
Used in industrial production to monitor the operating status of equipment, detecting overheating or malfunctions to ensure stable operation of the production line.

Fire Warning
Used to monitor fire hazards, such as overheated wires or the accumulation of flammable materials, providing early warnings to reduce fire risks.

Characteristic Measurement
In material science and physics, it can be used to measure thermal conductivity, thermal radiation properties, etc., providing strong support for scientific research.

Scientific Research
In meteorology, geology, and ecology, it can monitor surface temperatures, volcanic activity, forest fires, and other natural phenomena, providing important data for scientific studies.

SPECIFICATION

Model		640LA	640MA
Basic Performance	Detector Type	MCT cooled infrared detector	Mid-wave MCT/InSb infrared detector
	Resolution	640 x 512
	Pixel Pitch	15 µm
	Spectral Response Range	7.7 µm – 9.3 µm	3.7 µm – 4.8 µm
	NETD	≤25mK @ 25°C
	F#	2.0	4.0
	Cooling Method	Stirling cooler
	Cooldown Time	≤ 8 minutes @ 25°C
	Dynamic Range	14 bit
	Brightness and Contrast	Adjustable Adjustable
	Image Processing	Image  enhancement                                                                        Manual 、 automatic contrast adjustment;                              Focus sharpening
	Focal Length	25mm/50mm/100mm or customized
	Filter Wheel	Optional, available in 2-position or 4-position, with customizable filter  spectral bands.
Temperature	Temperature  Measurementc	Range ： 0°C ~ 150°C /                                                                                                             extendable up to 1500°C  (optional)
		Equipped with real-time radiometric temperature measurement function
	Temperature Measurement Accuracy	≤ ±1% or ±1°C (0°C ~ 150°C)
		≤ ±2% or ±2°C (150°C ~ 1500°C)
	Power Supply	+20 ~ +28VDC, nominal +24VDC
Interface	Digital Video Interface	14-bit Cameralink (Cameralink Base mode)
	Network Interface	Gigabit Ethernet
	External Sync Input/Output	LVTTL level
Others	Weight	≤6.5kg
	Dimensions                        (Body detector)	324mm x 152mm x 189mm
	Operating Temperature	-20°C ~ +65°C
	Storage Temperature	-20°C ~ +70°C
