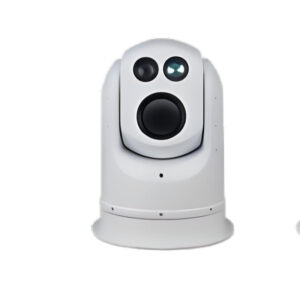

30X optical zoom PTZ security camera with infrared Laser night vision dual sensor
30X optical zoom ptz security camera with infrared Laser night vision dual sensor.
Features:
- high strength aluminum alloy structure, waterproof, corrosion protection, excellent heat-resistance, aging resistance and corrosion protection;
- With a Laser range of up to 400 meters,
- Wiper and heater options.
- high-speed P/T/Z system
- could catch image promptly at night
- Weatherproof design, high die-cast aluminum casing, protection grade IP66
- Super shockproof, especially suitable for car surveillance
- 360°continuously rotation, upward angle up to 180°
- 8 cruising tracks, each cruising track has 16 preset positions, 256 preset positions
- Input voltage: DC12V
- IP66 protection level.
Specs;
| Model NO. | SW-MIP9230T-LL |
| Image Device | 2.1MP Progressive Scan CMOS |
| Effective Pixels | 2.1 Megapixel |
| Resolution | 1920*1080@30FPS |
| Min illumination | 0.1Lux/F1.4(Color) 0.005Lux/F1.4(B/W) 0Lux/F1.4(IR on) |
| Laser Range | Over 400 meter |
| White Balance | ON/OFF, auto/indoor/outdoor |
| AGC | Auto/Manual |
| S/N Ration | >50dB |
|
Electronic Shutter |
P:1/3~1/10,000s N:1/4~1/10,000s |
| D/N Mode | Day & Night (IR cut) |
| WDR | ON/OFF optional |
| Digital zoom | 30 x optical ZOOM,12 x electronic amplifier |
| Privacy Zone | 8 zones |
| Focusing | Auto/Manual |
| Lens length | 4.3-129mm |
| Preset | 128 |
| Cruise Scanning | 6 cruises, 16presets for each cruise,128 preset positions |
| Pattern scanning | 4 sets, 180s PTZ memory |
| Horizontal Preset Speed | 160°/S |
| Vertical Preset Speed | 120°/S |
| Horizontal Manual Controlling Speed | 0.4°~80°/S |
| Vertical Manual Controlling Speed | 0.4°~60°/S |
| Horizontal Rotation | Pan: 0~360º |
| Vertical Rotation | +90°~-90° |
| Power Off Memory | Remember the state before power outage, including horizontal and vertical location, and lens zooming, resume when restarting |
| Auto Parking | Auto call up of preset/ patrol/ pattern/tilt scan/random scan/frame scan/panorama scan, after a defined time of inactivity |
| OSD menu | Chinese/English |
| Alarm (optional) | 2 inputs, 1 output; can be preset point linkage, cruise scan, pattern scan, trigger switch output the client electronic map |
| PTZ Control Protocol | PELCO-P, PELCO-D(can be added) |
| Power Supply | DC10.5V~DC18V(3.5A, Vehicle);AC24V(2.5A, Normal) |
| Power Consumption | 50W max |
| Protection levels |
IP66 lightning protection, anti-surge |
| Operation Temperature | -40°C~+65°C |
| Shock Resistance | ≥4G |
| net weight | 8KG |
| Weight | 55 kg |
|---|---|
| Dimensions | 12 × 65 × 65 cm |
